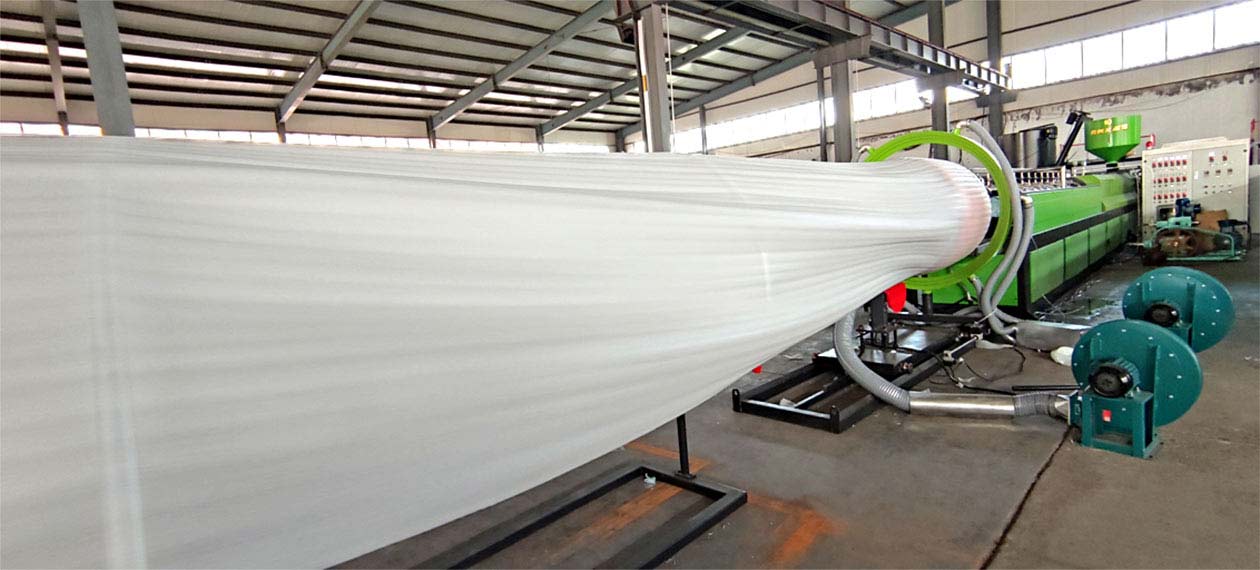

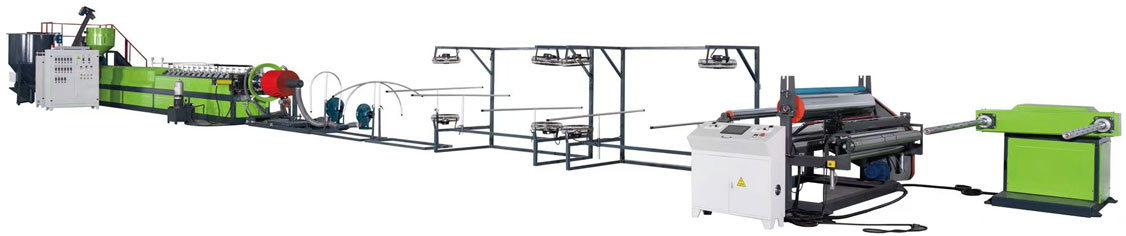

EPE Foam Sheet Extrusion Machine
The epe foam product produced by the EPE foam sheet extrusionmachine made in our factory can reach the lightest density of 8g/m2.(0.5mm thickness) (some customers can achieve <=7.5g/m2), and the cell structure is fine and uniform.
Both the foaming agent and electricity consume less, the corrugation is small, the output is big, and the production speed is fast. Besides, one machine has multiple functions. As long as you change the die head and corresponding auxiliary parts, you can make other products such as foam profile, foam pipes, foam rods, foam nets, yoga rods, etc.
EPE foam sheet extrusion machine Technical data:
| Model | Screw dia (mm) | width (mm) | Thickness(mm) | Total power (KW) | Output (kg/h) | Foaming times | Dimension(m) |
| EFP-75 | 75 | 850~1600 | 0.2-3 | 55 | 25-50 | 9-64 | 20*4*3 |
| EFP-90 | 90 | 850~2000 | 0.2-4 | 75 | 60-90 | 22*4*3 | |
| EFP-105 | 105 | 850~2000 | 0.3-6.5 | 95 | 80-120 | 25*4*3 | |
| EFP-120 | 120 | 850~2000 | 0.5-8 | 115 | 120-180 | 27*4*3 | |
| EFP-135 | 135 | 850~2000 | 1-10 | 150 | 170-220 | 35*4*3 | |
| EFP-150 | 150 | 850~3000 | 2-12 | 220 | 250-300 | 38*7*3 | |
| EFP-170 | 170 | 850~3000 | 2-15 | 320 | 100-450 | 40*7*3 | |
| EFP-180 | 180 | 850~3000 | 3-18 | 330 | 300-500 | 41*7*3 | |
| EFP-200 | 200 | 850~3000 | 3-20 | 400 | 350-650 | 42*7*3 | |
| EFP-220 | 220 | 850~3000 | 3-22 | 450 | 400-700 | 43*7*3 | |
| EFP-250 | 250 | 850~3000 | 3-25 | 500 | 450-800 | 46*7*3 | |
| EFP-280 | 280 | 850~3000 | 5-27 | 560 | 500-900 | 49*7*3 | |
| EFP-300 | 300 | 850~3000 | 5-30 | 600 | 550-1000 | 50*7*3 |
Advantages Of Our EPE Foam Sheet Extrusion Machine：
1. The EPE foam sheet extrusion machine screw material and hardness are leading domestically. With our factory's machine frame, the service life of the screw is over 1/3 longer than that of those in the same industry!
2. The use of special technology saves 20% energy consumption than the others in the same industry!
3. The high-temperature melting section saves 10% of energy consumption, is safer and more durable!
4. The electric heating plate is controlled by full digital control, leading the industry!
5. The EPE foam sheet extrusion machine die head adopts internal and external double cycle cooling method, which makes the temperature control more accurate, safer, faster and more efficient.
6. The foaming of EPE sheet is the result of the physical foaming agent (butane)changing from liquid to gas. Butane is colorless, odorless, non-toxic and non-corrosive.
Installation And Precautions Of EPE Foam Sheet Extrusion Machine:
1. The EPE foaming machine should be placed on a level ground, and the concrete foundation of the extruder and the main motor part should be larger than 30cm.
2. The main machine and main motor are fixed by M16 metal expansion bolts, and the rest are laid flat on the ground, not fixed, butane pumps, etc. can also be fixed with M10 metal expansion bolts.
3. Because the foaming agent used in the EPE foaming machine is butane, which is inflammable and explosive, the workshop and warehouse must be ventilated, equipped with explosion-proof fans, explosion-proof lights, explosion-proof switches, etc.
4. It is strictly forbidden to use open flames in the workshop. The factory area, the workshop and warehouse should be equipped with sufficient facilities.
5. Place each part of the equipment according to the layout drawing of the production line, and calibrate the center line and level of the unit. The distance between auxiliary machines can be adjusted appropriately according to the workshop site conditions. Auxiliary equipment such as electric control box, anti-shrink pump, butane pump, mixer, etc., should be placed where it is convenient for operation and maintenance according to actual conditions.
6. The electrical appliances of the EPE foaming machine must have good grounding protection.
7. After it is in place, connect the electricity, water, and gas pipelines.
8. Check whether the parts are loose or falling off.
9. Check whether the transmission components are normal.
10. The lubricating oil for the main reduction box of the extruder is medium-duty industrial gear oil (GB5903-86)
Why Choose Us
China manufacturer of EPE foam machinery since 2003.EPE foam machine not only have covered all over China, but also have exported to more than 70 countries
